High-Definition Deep Brain Stimulation: rDBSA

The NeuroNexus rDBSA (research Deep Brain Stimulation Array) is a high-resolution research-grade device designed for precise deep brain recording and microstimulation. It is adapted from innovative clinical DBS technology and is suitable for both acute and chronic neuroscience research applications.

Key Advantages:

Versatile Applications: Available in both acute and chronic configurations.
High Resolution: 40-channel design (32 stimulation channels, 8 recording channels) allows selective and tunable microstimulation and precise neural recordings.
Small Animal Compatible: Specialized rat-sized rDBSA developed in collaboration with Daniel Ehrens at Johns Hopkins University for rodent studies.

Technical Specifications:

Electrode Site Material: Platinum
Substrate Material: Polyimide
Lead Diameter: 0.75 mm
Penetration Length: Up to 45 mm

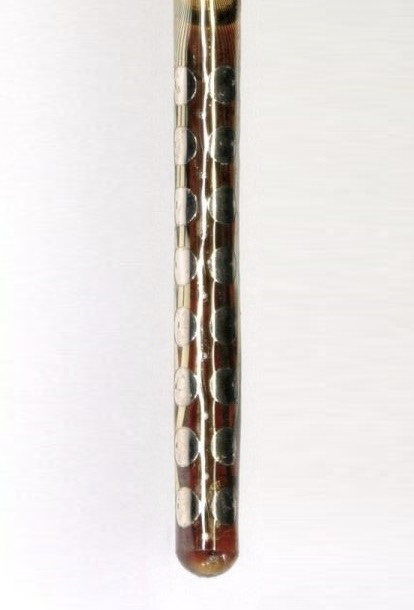

Electrode Contact Shape: Elliptical
Channel Count: Total 40 channels (32 stimulation, 8 recording)

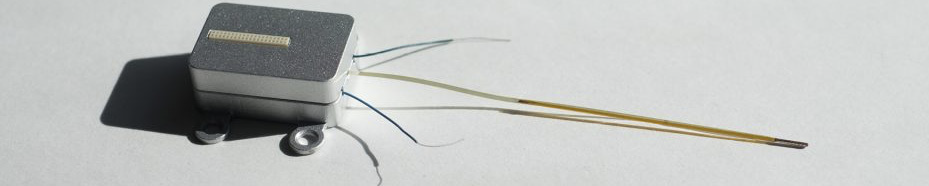

Connector Packages:

32 Channels: Omnetics NPD36 connector, allows access to any subset of 32 channels, typically used for stimulation.
40 Channels: Flex40 connector package, providing access to all 40 channels.
Rat DBSA: Omnetics NPD18 connector specifically designed for rat-sized probes.

Applications:

Designed for precision recording and stimulation of deep brain structures, enhancing research capabilities in neuroscience.
