Fusion Probes: Double-sided Microelectrodes

The Fusion double-sided neural probe is a cutting-edge solution designed to meet the needs of advanced neuroscience research and applications. By integrating electrodes on both sides of a silicon substrate, the Fusion offers unparalleled versatility and precision in neural interfacing, enabling researchers to capture and stimulate neural activity with unprecedented accuracy.

Key Advantages:

• Enhanced Neural Coverage: Allows recording and stimulation from both sides of the probe.
• Versatile Compatibility: Integrates seamlessly with over 200 existing and customizable probe designs.
• Ultra-Compact Design: Suitable for both acute and chronic applications, facilitating precise neural interfacing.
• Improved Signal Accuracy: Optimized for precise capture and stimulation of neural signals.

Technical Specifications:

• Electrode Site Material: Platinum (Pt), standard; also customizable with Iridium (Z-Coat), and Gold.
• Electrode Length: 3-10 mm
• Shank Quantity: 1-8 shanks
• Electrode Site Material Options: Iridium (Pt), Platinum, Z-Coat
• Electrode Count: Available configurations include 32, 64, and 128 channels

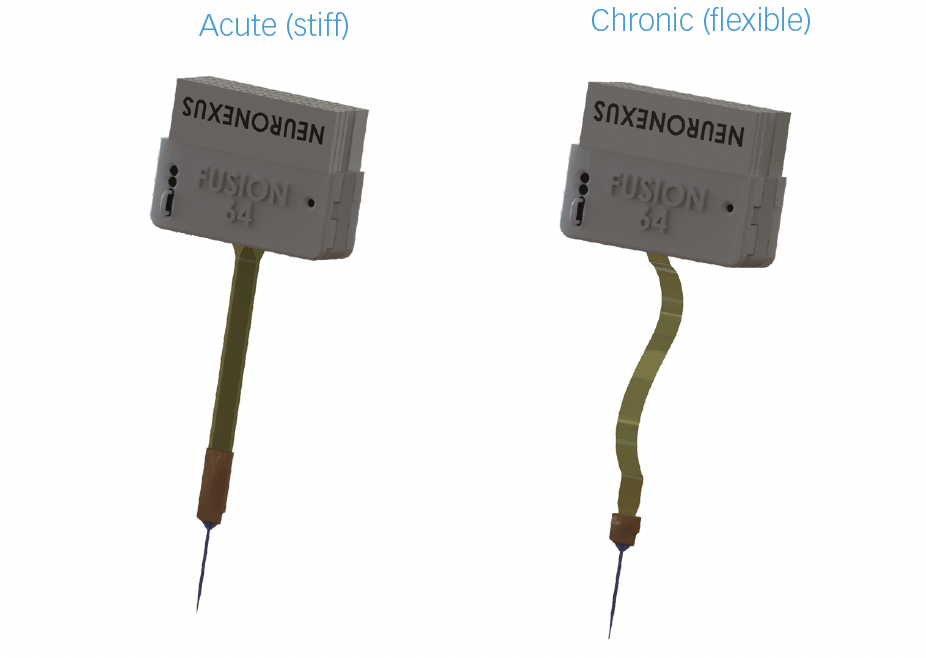

• Electrode Thickness: Options designed for acute (30 mm chronic cable length available) and chronic use
• Probe Package: Cable or no-cable options, with chronic cable length of 30 mm
• Compatibility: Suitable for use with implantable microdrives and NeuroNexus insertion assist devices

System Compatibility:

• NeuroNexus X-series insertion tools

• XDRIVE microdrive systems

  NeuroNexus and third-party data acquisition systems, including:

  • Intan DAQ systems
  • Open Ephys DAQ systems
  • NeuroNexus SmartBox Pro

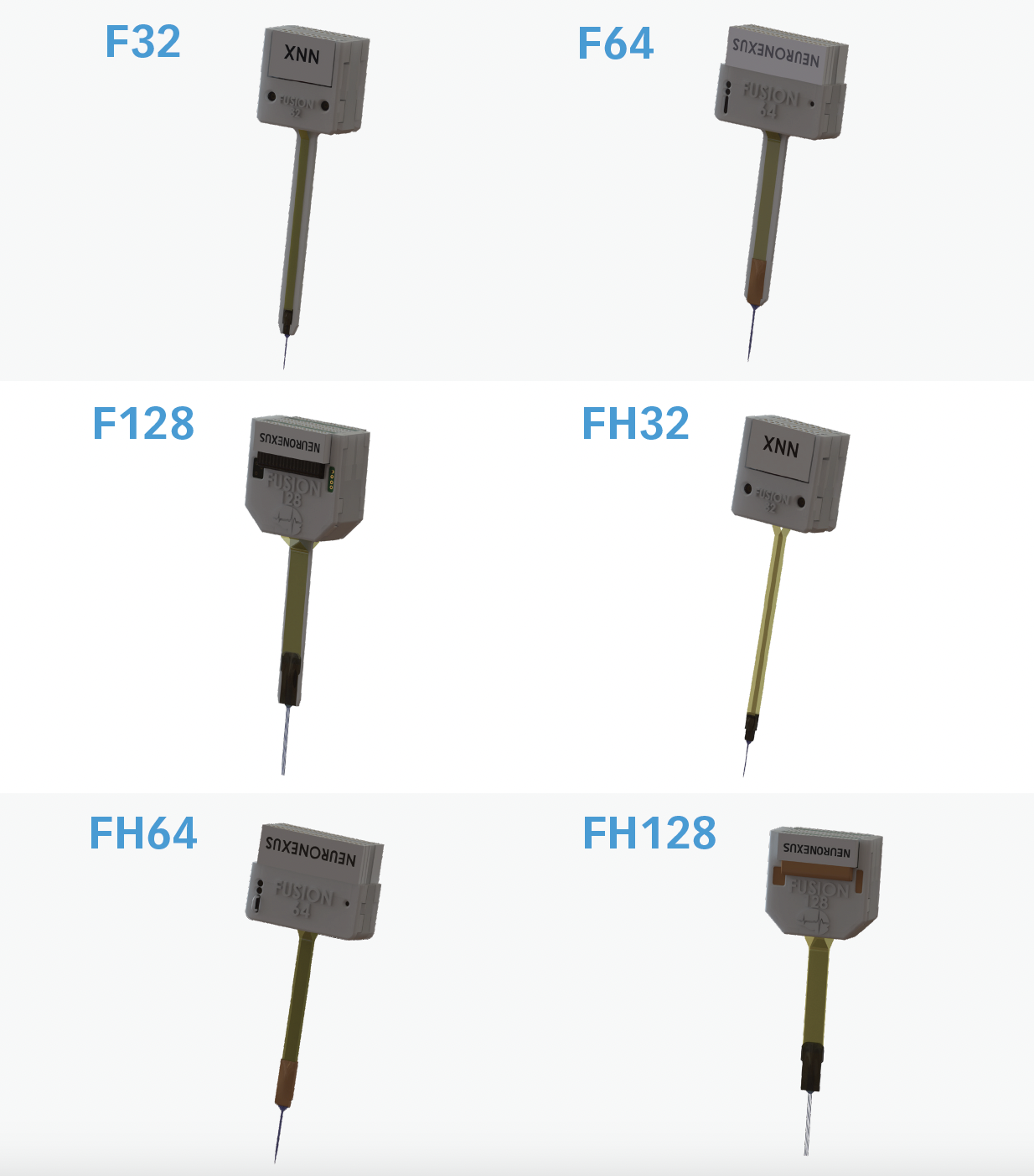

Available Probe Packages:

• Fusion Series: F32, FH64, FH32, F128, F64, FH128

Beta-Testing Opportunities: Researchers interested in pioneering Fusion Probe technology can contact NeuroNexus to become beta testers.
