NeuroNexus Silicon Probes: Overview
NeuroNexus probes offer precise and reliable neural recordings for single-unit, multi-unit, and local field potential (LFP) studies, suitable for acute and chronic applications. These probes provide consistent results due to their dependable mechanical and geometric characteristics, reducing experimental variability.
Key Advantages:
- Consistent and reliable mechanical and geometric characteristics
- Large variety of designs to accommodate diverse research needs
- Seamless integration with major data acquisition systems and hardware
- Suitable for acute and chronic recording and stimulation applications

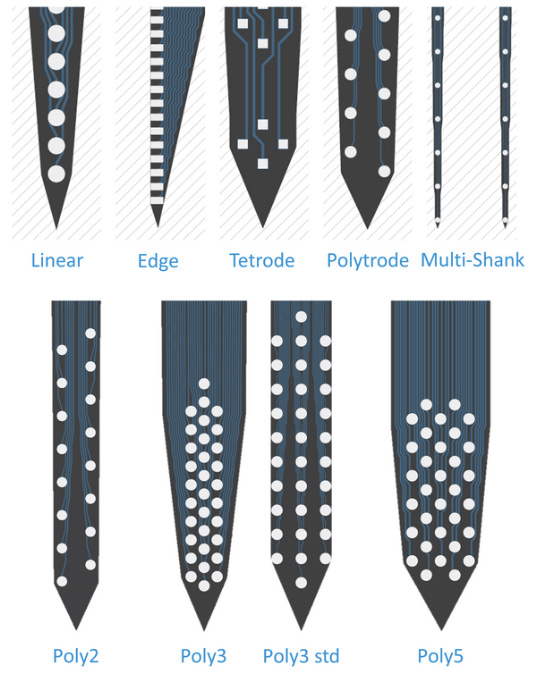

Available Probe Designs:
- Linear: Laminar design covering extensive recording areas
- Edge Sites: Electrodes positioned strategically at substrate edges
- Tetrode: Four electrode sites grouped closely for precise recordings
- Polytrode: Electrode site layouts have a mix of linear and tetrode benefits
Multi-shank: Electrode arrays provide a two-dimensional representation of the
brain.
Technical Specifications:
- Channel Counts: 16, 32, 64, 128, 256, and 4-channel configurations
- Electrode Length: Ranges from 2–15 mm (varies by design)
- Electrode Thickness: 15 µm (varies by design)
- Electrode Site Material: Platinum (Pt)

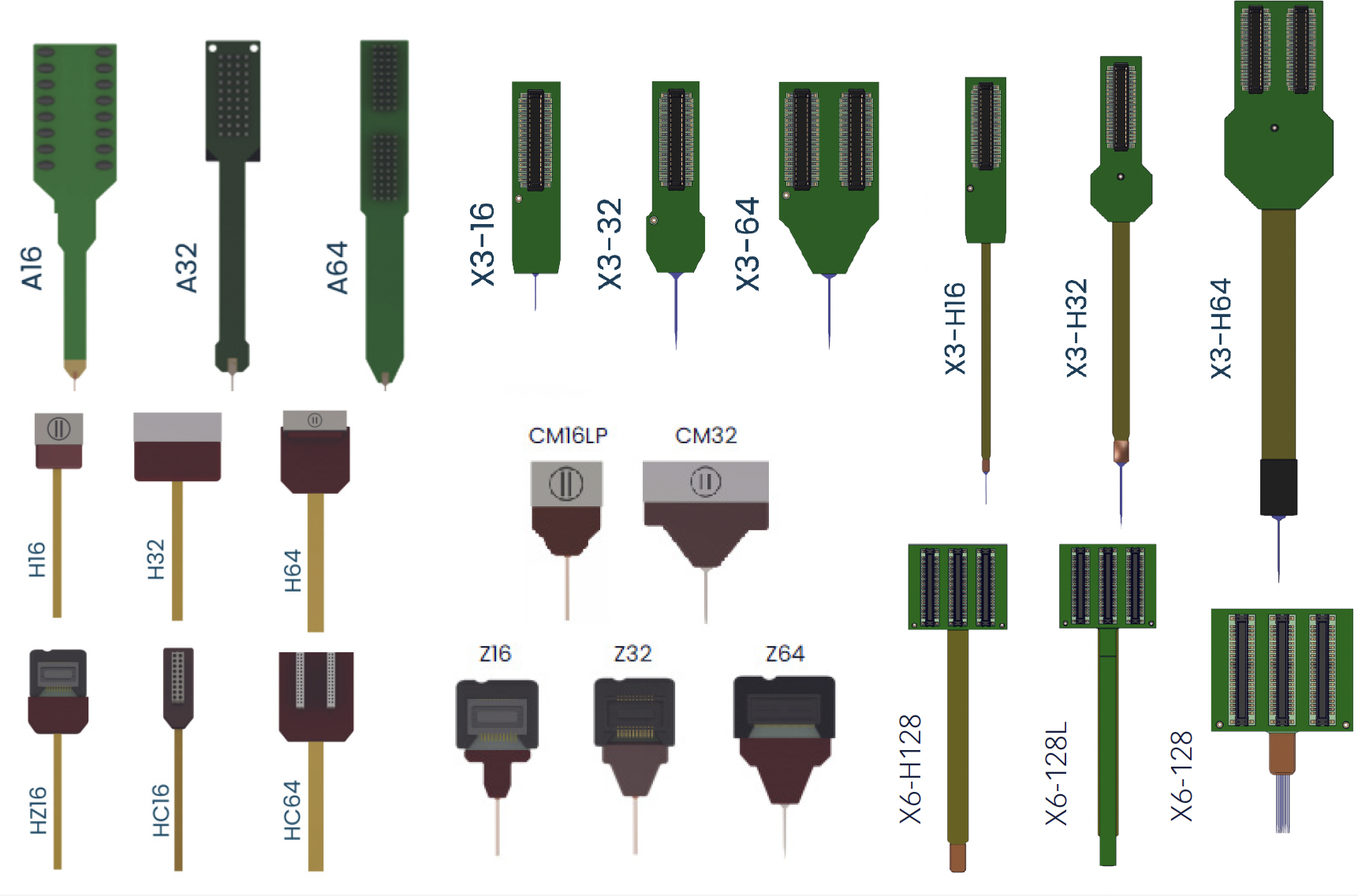

- Customizable packages: A16, A32, A64, CM16LP, CM32, H16_21mm, H32_21mm, H64LP_30mm, Z16, Z32, Z64, HZ16, HZ32, HZ64, I128, H16_21mm, IH32_21mm, H64LP_30mm, Z16, Z32, Z64, HZ16, HZ32, HZ64, I128, X6-128, X6-128L, X6-H128, and others

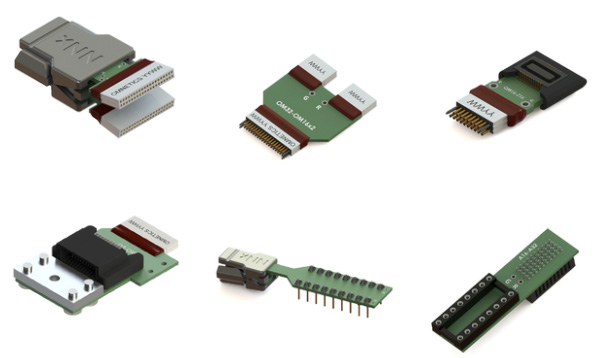

Headstage Adaptors:
If you have a headstage that does not connect directly to a standard probe package, NeuroNexus
offers a range of headstage adaptors.

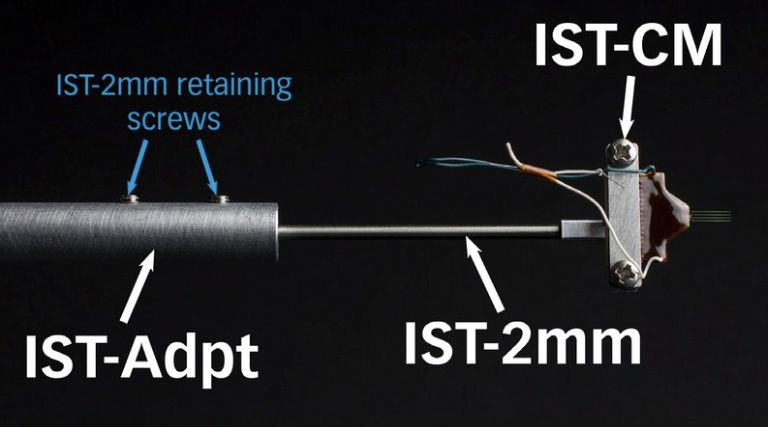

Insertion Tools:
Manual insertion tools compatible with standard stereotactic equipment (IST-Adpt for Kopf 7.9 mm stereotactic arm)
